EyeT+ Inspect

WHAT IS EYET+ INSPECT COMPLETE?

EyeT+ Inspect Complete is the vision system for automatic and objective completeness inspection across 100% of production, detecting defects such as lack, excess or deformation in 3D shape.

COS’E’ EYET+ INSPECT COMPLETE?

EyeT+ Inspect Complete è il sistema di visione per il controllo automatico e oggettivo della completezza del 100% della produzione, in grado di rilevare difetti come parti mancanti, in eccesso o deformazioni della forma 3D.

1. RECONSTRUCT

Accurately and rapidly reconstruct the 3D shape of the part by combining multiple views.

2. VERIFY

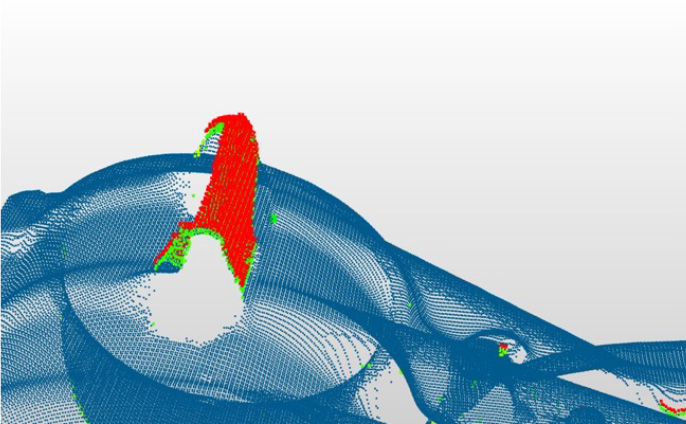

Automatically verify for completeness defects by analyzing the 3D geometry.

3. MONITOR

Optimize and adjust your production by collecting precise and objective inspection results in real time.

THE BENEFITS OF EYET+ INSPECT COMPLETE

Guarantee objective and consistent results over time.
Continuous monitoring across 100% of production.
Designed for integration with robotic work cell, allowing inspection from multiple view points.
Early identification of defects for rapid corrective action.
Integrated data collection for monitoring and efficient management of non-conformities.

WHY CHOOSING OUR EYET+ INSPECT COMPLETE?

OBJECTIVE QUALITY INSPECTION

Make your quality control objective:

Ensure the same quality standard on every single piece produced
Collect real-time data for each product, monitoring the entire production process
Optimize production by automatic collection of inspection results

EXPLOIT THE BENEFIT OF A 3D VISION SYSTEM

Overcome the limitations of 2D analysis:

Inspection tools are based on 3D geometry, making definition intuitive
Consistent results on every object, unaffected by lighting conditions or contrast
3D vision automatically compensates for differences in product positioning

INCREASED PRODUCTIVITY ON THE LINE

Improves return on investment:

Early detection of non-conforming parts avoids unnecessary processing on defective products
Reduce non-conformities management costs
Automate quality inspection to objectivize inspection results and increase productivity

USE CASES

Metal casting

Inspection of casted parts

EyeT+ Inspect Complete automatically detects defects at the end of the casting or trimming of aluminum, cast iron and other metals. Early detection of non-conforming parts avoids unnecessary processing on defective products.

Sand cores

Sand cores inspection

EyeT+ Inspect Complete inspects the geometry of sand cores, commonly used in gravity or low-pressure aluminum casting. Sand cores’ inspection reduces costs associated with inner defects otherwise only detected on the final product.

Mold assembly

Mold inspection

EyeT+ Inspect Complete allows to monitor the condition of the mold in gravity or low-pressure processes, verifying proper cavity cleaning and the correct positioning of sand cores, identifying potential issues before production even starts.

Assembly

Assembly line inspection

EyeT+ Inspect Complete verifies, at the end of a manual or automatic line, the completeness of the assembly by checking the presence, type and correct positioning of each component.

WHAT MAKES EYET+ INSPECT COMPLETE UNIQUE?

Machine vision software

Smart Inspect 3D allows to configure quality control using advanced yet intuitive tools designed to easily analyze and manipulate the 3D reconstruction of the product.

Certified devices

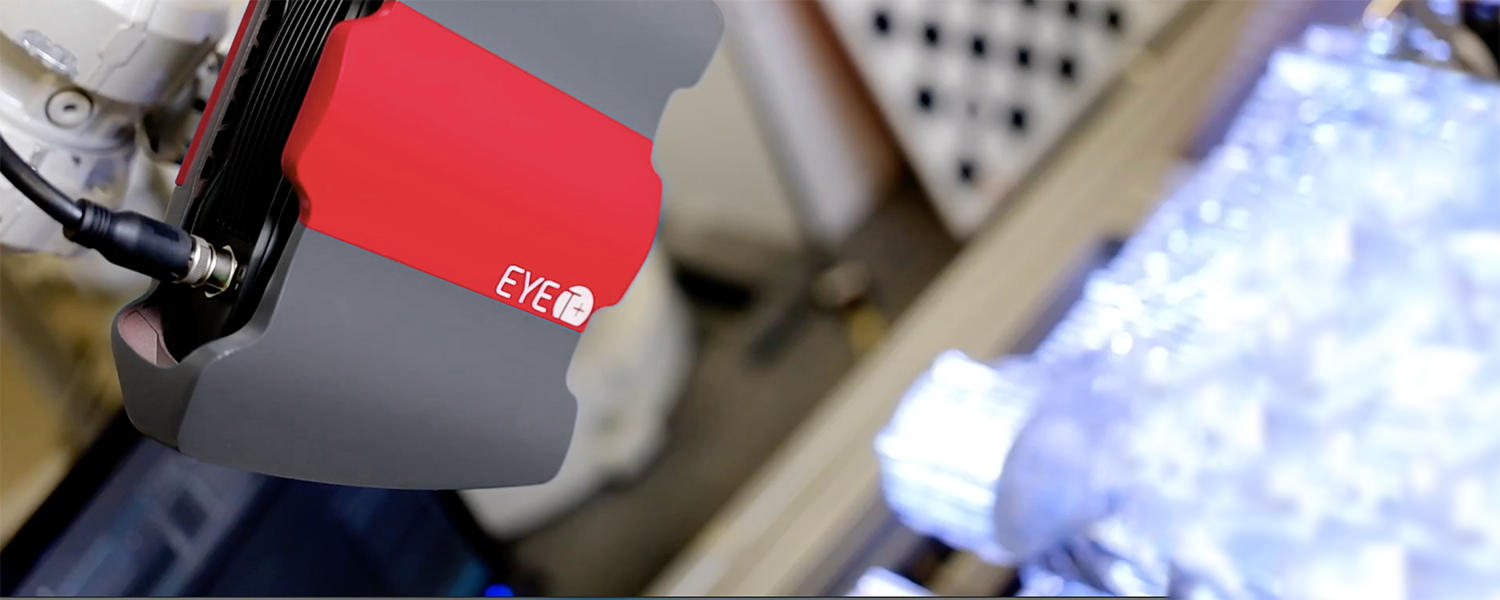

Depending on the requirements of the application, the EyeT+ ZV2 snapshot device, which captures the part from a single position, or the EyeT+ GC profilometer, which enables a particularly accurate 3D scan of the part, can be selected.
